The aftershock monitoring device is a high-precision wireless digital alarm designed to protect the safety of rescue personnel during emergency rescue operations, and to safeguard the safety of on-site rescue personnel in various emergency situations. The aftershock monitoring device integrates displacement monitoring and vibration monitoring, and comes with sound and light alarm functions. It also supports wireless remote operation and is suitable for monitoring inclined buildings, glass, building beams, concrete walls, metal tanks, and more.

1. Product Introduction

The aftershock (displacement) monitor is a high-precision wireless digital alarm device designed to protect the safety of rescue workers during emergency rescue operations, safeguarding the safety of on-site rescuers in a variety of emergency situations. The aftershock (displacement) monitor integrates displacement monitoring and vibration monitoring, equipped with built-in audio-visual alarm functions and supports wireless remote control. It is suitable for monitoring tilted buildings, glass, building beams, concrete walls, metal tanks, etc.

2. Product application

The aftershock (displacement) sensor can be installed on any position and any surface of a structure, providing early movement and vibration alarms;

Three, operating environment

1. Collapsed structure

2. Road traffic collapse

3. Trench Rescue

4. Movement of the support system

5. Tilted building beams

6. Glass doors and windows

7. Dangerous building structure, fire/flood or other unexpected events

IV. Product Features

1Portable, lightweight, quick deployment

2. User programming, intelligent functions

3. Alarm settings

4. Magnetic base, quick on-site deployment

5. In any situation, sound, light alarm

6. Simple Standardized Operating Procedure

7. Suitable for a variety of emergencies

8. High impact resistant machine box

The magnetic suction cup of the aftershock (displacement) sensor can be quickly and easily installed on metal surfaces, and other fixing accessories are also provided. With the aftershock displacement rescue alarm, rescuers can focus on the rescue work in extreme pressure environments with a sense of security.

5. Technical parameters

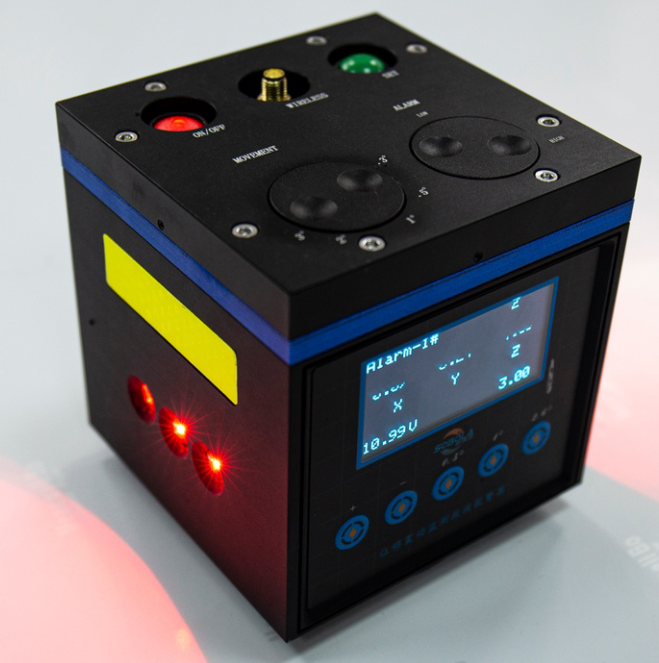

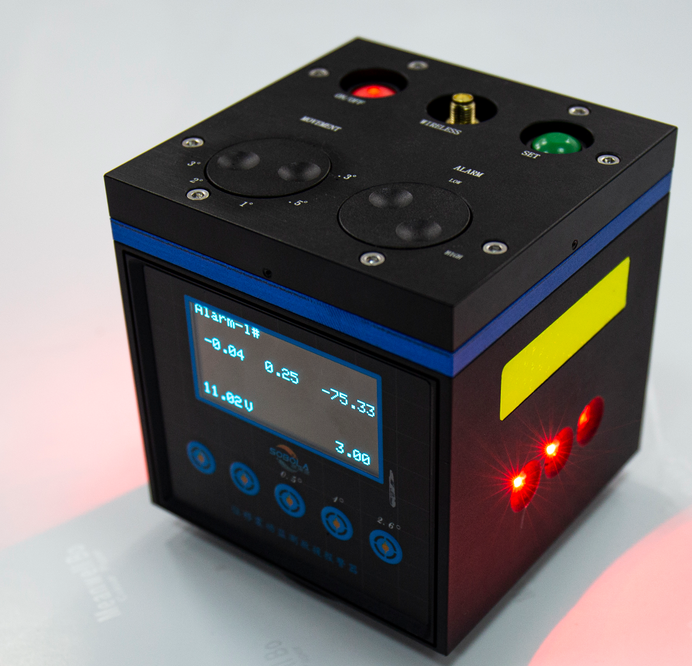

1. The diagonal of the main screen is 6.5 cm, which can display the real-time values of displacement, vibration, voltage status, alarm value, and manufacturer's model.

2. Measurement range: three-dimensional (360 degrees), which can be monitored by three-dimensional X, Y, Z axes display.

3. Resolution: 0.01 degrees

4. Precision: 0.1 degree

5. Audible and visual alarm: 6 flashing LED lights, fire sound 102dB, the alarm sound can be turned on and off;

6. Alarm value: fixed alarm value of 0.5 degrees, 1 degree, 2.6 degrees; you can also set any alarm value (any value between 0.1 and 10) by turning the knob or pressing the key;

7. Battery monitoring: power-on self-test and low voltage sound alarm prompt;

8. Size: 100*100*102;

9. Battery: Built-in high capacity lithium battery, working time more than 12 hours;

10. Each set of equipment is equipped with 4 channels of afterslip displacement monitor (optional)

11. Fixing method: Magnetic suction cup adsorbed on the surface of the object to be tested.

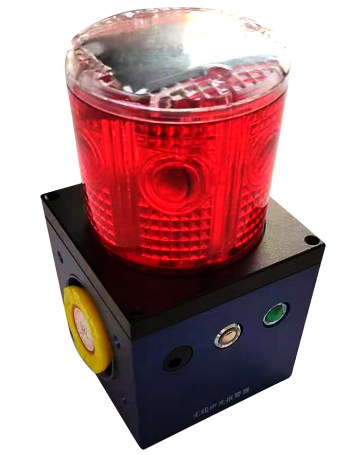

12. Audible and visual alarm:

12.1 The seismic alarm has a reverse one-key search function, which can automatically alarm the auxiliary seismic monitoring alarm and reverse locate the monitoring instrument position.

12.2 Audible and visual alarm can receive the alarm from the earthquake monitor and distinguish the source of the alarm signal through the voice broadcast function, and can be linked with 4 earthquake monitors at the same time.

12.3 Battery: Built-in high capacity lithium battery, standby time greater than 65 hours;

12.4 Transmission distance: 550 meters.

12.5 alarm mode: audio-visual alarm, sound 122 DB.

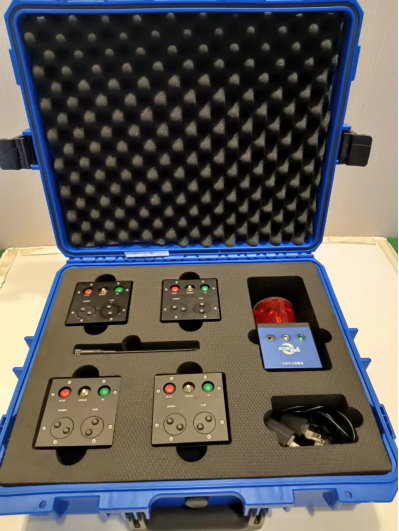

Six, Product Configuration

1. Displacement host 4 units

2. Sound and light alarm 1 unit

3. Adhesive magnet 4 pieces

4. Remote control 1 piece

5. Antenna 1 set
