Termite monitoring device can monitor termite activities in real time, realize early warning and accurate monitoring, record and analyze data, and support remote monitoring, which is convenient for managers to grasp the situation at any time, and can also be used to evaluate the control effect and provide strong support for scientific control of termites. Widely used in water conservancy dams, housing construction, cultural preservation of ancient buildings, landscaping and so on.

1. Product use

Termite monitoring devices monitor termite activity in real-time, achieving early warning, precise monitoring, and can also record and analyze data, support remote monitoring, allowing managers to grasp the situation at any time, while also being used to evaluate the effectiveness of pest control, providing strong support for scientific pest control of termites. Widely used in water conservancy dykes, housing construction, ancient building cultural relics protection, garden greening, etc.

2. Product features

The system is a sensitive termite monitoring and early warning system by the combined use of loop technology and autonomous network communication technology, Internet technology, etc.

Traditional monitoring devices require manual inspection, but the new device can automatically detect termites without opening the compartment, and it can upload the automatic detection results on a regular basis. The backend management platform immediately displays the detection results.

Monitoring accuracy is more than 95%.

Each part is designed in a modular way, forming parts that are independent of each other, and operations are mutually integrated, making it easy to replace parts during operation.

The shell and inner frame of the monitoring device are made of resin nylon composite material, and the encapsulation of the sensing electronic module reaches IP68 level, with good corrosion resistance, not easy to corrode in humid, acidic and other different soil environments, ensuring that the monitoring device can operate normally for a long time in harsh soil environments.

3. Technical principles

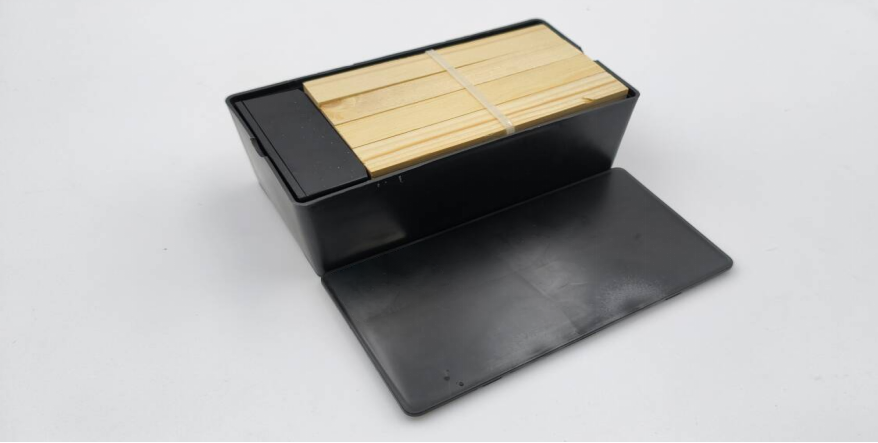

The system consists of several parts, including the monitoring device housing module, the lure and trigger module, the signal acquisition module, the information processing and transmission module, the database, the PC management software, and the WeChat mini-program.

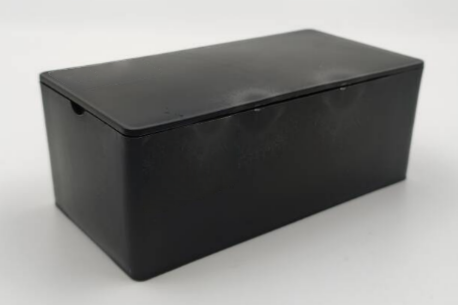

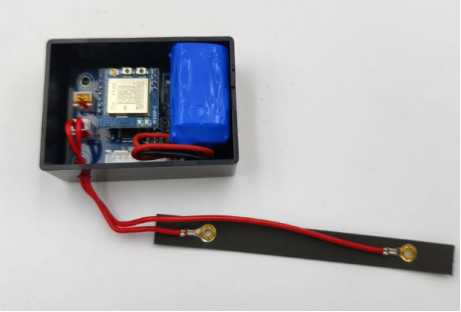

(1) Shell module; (2) Information collection module.

4. Technical parameters

5. System Architecture

The technology of ring circuit and autonomous network communication technology, Internet technology and other comprehensive applications are adopted. The device is buried at the appropriate position, and the built-in precision sensor reports the status data of the monitoring point in real time, such as no ant, ant, killing, killed, displacement, offline, damage, etc., and the data information is transmitted and displayed on the terminal operation platform such as WeChat mini-program and computer client.
