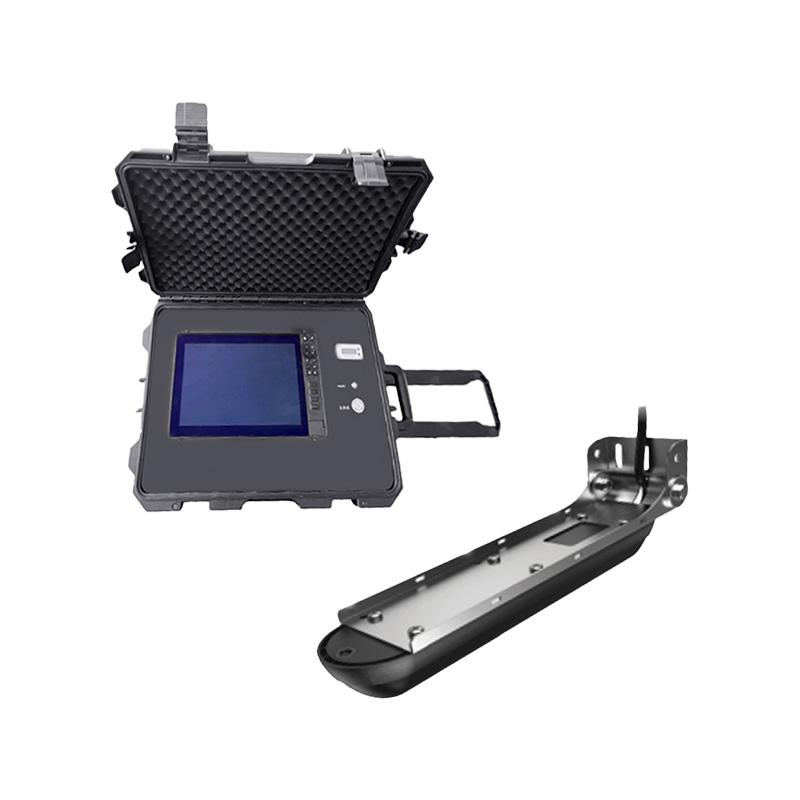

Multifunctional underwater sonar search system technology is constantly exploring, with the help of extremely clear imaging technology for underwater recovery and rescue.

The riverbed, the waters, a scanning view, a three-dimensional view, and the detection of underwater life are provided for the reader to be more intuitive.

The structure of the water is solved, greatly improving the efficiency of underwater operations, and it is one of the important equipment that can be relied on for underwater salvage and rescue.

1. Screen type: 7-inch IPS screen, resolution ≥ 1200*900, brightness ≥ 1200 nits.

2、Screen function: Chinese operating system, can be turned on four/six split screen, to view four/six pictures at the same time, and can be independently controlled, and can also be arbitrarily set to combine the interface, which can display positioning, water temperature, time, range.

3、Withstand pressure water depth: ≥300m.

4、Waterproof grade: ≥IP68.

5. Shortcuts function: It has 5 custom-editable shortcut keys.

6、Viewing angle: vertical angle 160°, 80° up/down, horizontal angle 160°, 80° left/right.

7、Survey range: structural bottom sweep ≥ 90m, structural side sweep ≥ 180m, maximum range depth ≥ 300m.

8、Support functions: autopilot, Bluetooth connection, radar compatibility 3G, 4G, HALO24 radar antenna, GPS, WAAS/EGNOS, world simple chart, ship automatic identification, built-in CHIRP1 and CHIRP2 dual-channel sonar.

9、Sonic operating frequency: 50KHZ/83KHZ/200KHZ/455KHZ/800KHZ/1200KHZ, available CHIRP frequency.

10、Recording function: sonar, structure scanning with recording function can be replayed and analyzed.

11、Working voltage: 12V.

12、Power consumption: 33.12W.

13、Sonic power: 600W.

14、Operating ambient temperature: -15℃~+55℃.

15、Equipment configuration: NMEA0183 data output/input RS422, support baud rate 4800,19200,38400, 2 Ethernet interfaces, 1 NMEA2000 data interface, video input interface, 2 miniSD data card slots, support up to 32G.

16、Number of waypoints and tracks stored: Waypoints stored number 3000, tracks stored number 100, tracks stored number, 100 (each track can have up to 10000 points), support for the automatic identification system for ships, can support audio power amplifier connection.

17、Sonic Alert: shallow water alarm, GPS alarm function.

18. Power supply configuration: The power supply box has two power supply modes, namely, built-in battery power supply and external AC power supply. The power supply box can display the battery power, can be quickly charged through the battery interface, the battery endurance time ≥ 14 hours, and the external AC power supply can achieve infinite endurance.

19、Disassembly of the bracket and handheld probe: The main unit and the sonar probe should be equipped with a bracket that can be installed and removed quickly for use on a Zodiac/INFLATABLE boat, and have the function of adjusting the depth of the sonar probe.
