Model：WX-YL1
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
The tipping bucket rain sensor, also known as the tipping bucket rain gauge or tipping bucket rain sensor, can accurately measure every drop of rainwater passing through the rain gauge. It is professional, stable, reliable, and low-power, and is used to monitor meteorological, hydrological, environmental, slope, foundation pit, landslide geological disasters, etc
1. Technical indicators
1. Power supply: DC12V
2. Power consumption: 0.02W
3. Working environment: 0~50℃
4. Communication interface: RS485
5. Maximum power consumption:0.048W (4mA DC12V)
6. Shortest data interval: 0.5S
2. Sensor parameters
| Rain gauge cylinder diameter | Φ200mm |
| Working temperature | 0～50℃ |
| Working humidity | <95% (no dew) |
| Error | ≤±2% |
| Resolution | 0.2mm |
| Rain intensity range | 0mm～4mm/min allowed to pass the maximum rain intensity of 8mm/min |
| Heavy rain over a wide area | 0～10mm/min allowed to pass the maximum rain intensity of 15mm/min |
| Output method | Modbus 485 |

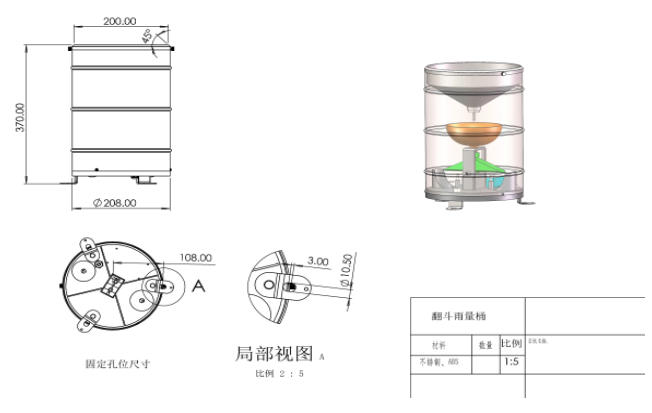

Three, Product Size Chart
