The twelve element micro meteorological instrument, also known as the atmospheric pollution environmental monitoring instrument, is a highly integrated instrument that monitors six pollutant parameters including PM2.5, PM10, CO, SO2, NO2, O3, as well as a total of 12 parameters including air temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and piezoelectric rainfall.

1. Product Introduction

As a professional enterprise dedicated to the research, development, production, and sales of micro-meteorological instruments, our company has always been committed to the promotion and application of micro-meteorological instruments and meteorological environmental solutions. With a complete production chain, a strong technical team, and a comprehensive marketing team, the meteorological products we have developed and produced, such as ultrasonic anemometers, five-element micro-meteorological instruments, six-element micro-meteorological instruments, and small automatic meteorological stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, navigation ships, civil aviation airports, bridges, and tunnels. Our customers are spread all over the country, and we have achieved good social and economic benefits.

Compared with traditional micro-meteorological instruments, our company's products overcome the need for high-precision timing devices, avoiding the problems of inaccurate measurement caused by sensor startup delay, demodulation circuit delay, and temperature changes.

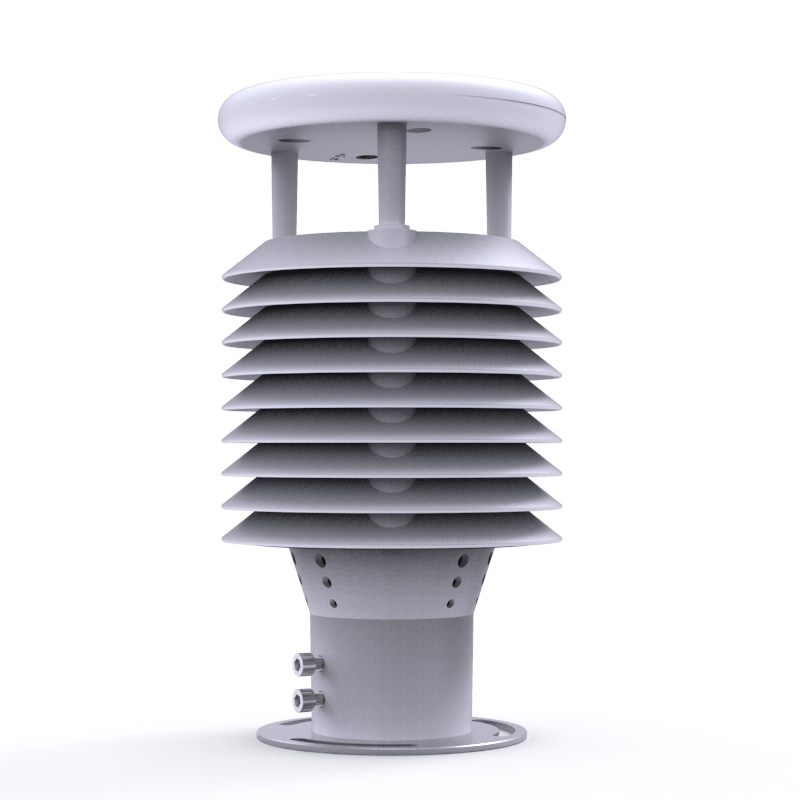

The Y12 type twelve-element micro-meteorological instrument, also known as the atmospheric pollution environment monitor, is a high-integration instrument developed by Shandong Wanxiang Environmental Technology Co., Ltd in response to the increasingly severe environmental protection situation. It is designed to monitor six pollution parameters, namely PM2.5, PM10, CO, SO2, NO2, O3, as well as air temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and piezoelectric rainfall, totaling 12 parameters. The main function is to continuously monitor the conventional pollution factors and meteorological auxiliary parameters in the air for 24 hours online, and provide the analyzed data to the environmental protection bureau as a reference for the quality of the air, and to assist in environmental protection decision-making. In addition, it can be optionally equipped with hydrogen sulfide, volatile organic pollutants, solar radiation, noise, etc.

The Y12 type atmospheric pollution environmental monitoring instrument can be applied to urban grid environmental monitoring control, smart streetlights, scenic area environmental monitoring, factories or mines, construction sites (site dust monitoring), urban roads, highways, public places and other places related to air quality monitoring.

Second, product features

1、Top cover hidden ultrasonic probe, avoiding the interference of rain and snow accumulation, avoiding the natural wind from blocking☆

2、The principle is to emit a continuous variable frequency ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase.

3、PM2.5、PM10、CO、SO2、NO2、O3、temperature、湿度、wind speed、wind direction、atmospheric pressure、piezoelectric rain gauge twelve elements in one star

4、Advanced sensing technology is adopted to measure in real time, without a starting wind speed☆

5、Strong anti-interference ability, with watchdog circuit, automatic reset function, to ensure the stable operation of the system

6、High integration, no moving parts, zero wear and tear

7、Maintenance-free, no on-site calibration required

8、Outdoor application of ASA engineering plastic does not fade for many years

9、Product design output signal standard configuration is RS485 communication interface (MODBUS protocol); optional 232, USB, Ethernet interface, support real-time data reading ☆

10、Optional wireless transmission module, minimum transmission interval of 1 minute

11、The probe is designed with a buckle, solving the problem of looseness and inaccuracy during transportation and installation.☆

Three, Technical Parameters

1. Wind speed: 0～60m/s (±0.1m/s);

2、Wind direction: 0～360° (±2°);

3、Air temperature: -40-60℃ (±0.3℃);

4、Air humidity: 0-100%RH (±3%RH);

5、Atmospheric pressure: 30-110Kpa (±0.25%);

6、PM2.5：0-1000ug/m3（±10%）

7、PM10: 0-1000ug/m3 (±10%)

8、Piezoelectric rain gauge: 0-4mm/min (±4%)

9、Carbon monoxide: 0-10ppm (±5% F.S)

10、Sulfur Dioxide: 0-5 PPM (±5% F.S)

11、Nitrogen dioxide: 0-5 PPM (±5% F.S)

12、Ozone: 0-5PPM (±5% F.S)

13、Power: 1.08W

14、Production enterprises have ISO quality management system, environmental management system and occupational health management system certification ☆

15、The production enterprise has the certificate of intellectual property management system and the certificate of computer software registration☆

16、The production enterprise is a credit enterprise of grade 3A☆

IV. Product structure diagram

5. Notes

1. Sensor level with a radius of 1.5 meters around without obstructions, avoid water droplets splashing affecting

2. The sensor mounting position should avoid strong mechanical vibration sources.
